Aluminium Coated Steel Plate

Category : Aluminum Product
  • Description
  • Specification
  • Standard

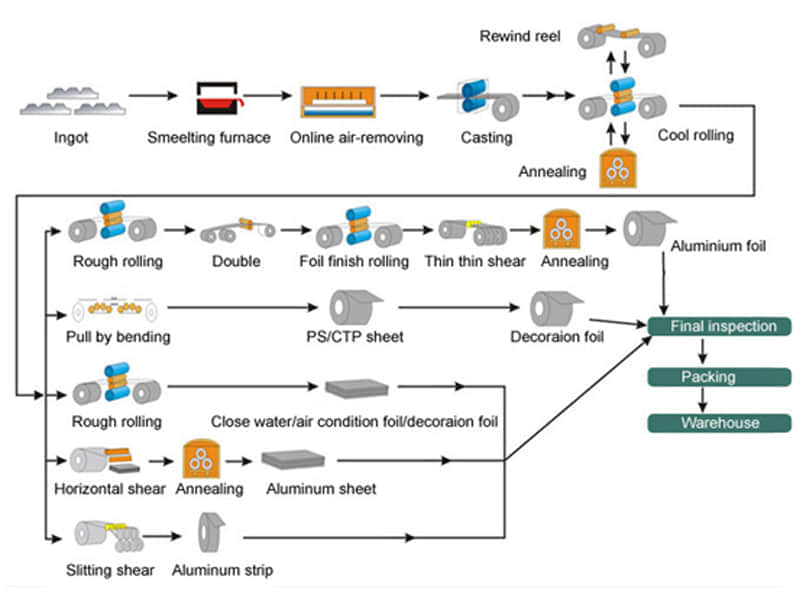

  • Process
  • Packing

Aluminised Steel Sheet can be processed in a variety of methods, but it is essentially cold rolled steel coated or hot ‘dipped’ in aluminium. The aluminium infuses into the steel producing a multiple-layered sheet. A secondary and controlling ingredient, silicon, is added to the dip bath to ensure the aluminium layer is as thin as possible. This hot dipping stage is followed by air drying.

One of the primary purposes is to produce a sheet that has combined aluminium and steel properties. This hot dipped overlay or finish provides the steel added anti-corrosive protection. Although its strength is superior to ordinary steel sheet, its finish is silky smooth to touch with shiny characteristics

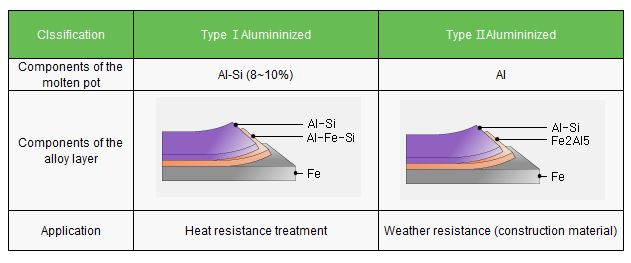

Coating Layers

Types of steel sheets are categorized by the components of the molten pot. Applications are as follows.

Two types of hot-dip are used (Type 1 and Type 2). The full characteristics of aluminized steel are defined by the exact metals used, as well as the processes (Type) used to produce the material.

Type 1 is hot-dip coated with a thin layer of aluminum / silicon alloy that has anywhere from 5% - 11% silicon. The silicon provides improved adhesion of the layers. Type 1 aluminized steel is designed for applications where heat resistance and corrosion resistance are needed. Physical Properties of Aluminized Steel are defined by the exact metals used, as well as the processes used to produce the material.

Type 2 is hot-dipped in commercially pure aluminum. Type 2 is designed for use where atmospheric corrosion resistance is needed.

Typical Uses

Type  1 - Hot-dip coated with a thin layer of aluminum/silicon alloy:

Mufflers

Furnaces

Ovens

Ranges

Water Heaters

Baking Pans

Type 2 - Hot-dip coated with commercially pure aluminum:

Corrugated Roofing/Siding

Grain Bins

Drying Ovens

Air-conditioner condenser housings

Aluminized Steel Sheet Type 1 Sizes

Dimensions: widths 1000/1220/1500 mm, lengths 2000/2500/3000 mm.

Size (in Inches)

Size (in mm)

.125″

.875″

3.18

22.2

.134″

1″

3.40

25.4

.156″

1.125″

3.96

28.6

.187″

1.250″

4.75

31.8

.250″

1.500″

6.35

38.1

.312″

1.750″

7.92

44.5

.375″

2″

9.53

50.8

.500″

2.500″

12.7

63.5

.625″

3″

15.9

76.2

.750″



19.1


Aluminized Steel Type 1 Plate Thickness

0.6 mm

0.8 mm

1.0 mm

1.2 mm

1.5 mm

1.6 mm

1.8 mm

2.0 mm

3.0 mm

4.0 mm

5.0 mm

6.0 mm

8.0 mm

10.0 mm

12.0 mm

15.0 mm

20.0 mm

25.4 mm

Type 1 Aluminized Steel Type 1 Plate Gauge Chart

The following size chart lists is the approximate decimal equivalents for metal gauges along with standard tolerances. Also please note that industry standard permits deviations from nominal thicknesses.

NOMINAL DECIMAL

STANDARD VARIANCE FROM

SHEET METAL GAUGE

(APPROXIMATE INCHES)

NOMINAL DECIMAL (+/- INCHES)

7

0.1793

0.0080

8

0.1644

0.0080

9

0.1495

0.0080

10

0.1345

0.0070

11

0.1196

0.0050

12

0.1046

0.0050

13

0.0897

0.0050

14

0.0747

0.0040

15

0.0673

0.0040

16

0.0598

0.0030

17

0.0538

0.0030

18

0.0478

0.0030

19

0.0418

0.0030

20

0.0359

0.0030

21

0.0329

0.0025

22

0.0299

0.0020

23

0.0269

0.0020

24

0.0239

0.0020

25

0.0209

0.0015

26

0.0179

0.0015

28

0.0149

0.0010

Aluminized Steel Type 2 Sheet Sizes

Dimensions: widths 1000/1220/1500 mm, lengths 2000/2500/3000 mm.

Size (in Inches)

Size (in mm)

.125"

.875"

3.18

22.2

.134"

1"

3.40

25.4

.156"

1.125"

3.96

28.6

.187"

1.250"

4.75

31.8

.250"

1.500"

6.35

38.1

.312"

1.750"

7.92

44.5

.375"

2"

9.53

50.8

.500"

2.500"

12.7

63.5

.625"

3"

15.9

76.2

.750"



19.1


Aluminized Steel Type 2 Plate Thickness

0.6 mm

0.8 mm

1.0 mm

1.2 mm

1.5 mm

1.6 mm

1.8 mm

2.0 mm

3.0 mm

4.0 mm

5.0 mm

6.0 mm

8.0 mm

10.0 mm

12.0 mm

15.0 mm

20.0 mm

25.4 mm

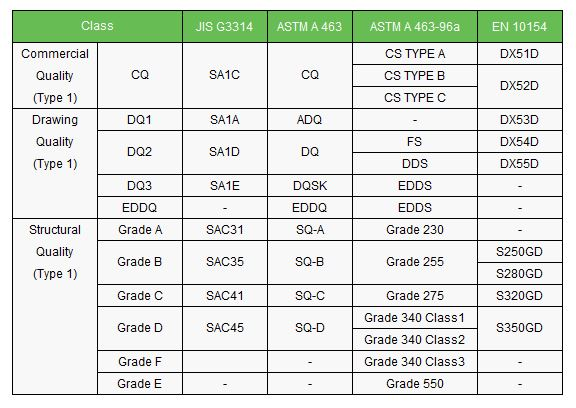

Grade and Symbol

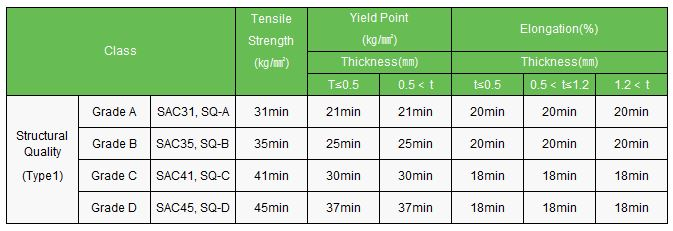

Mechanical Properties
