Titanium Plate

Category : Titanium Product

Standards: ASTM B265, ASTM SB265, AMS 4902, ASME SB265, DIN 17860

Titanium Grades: Gr 1, 2, 3, 4, 5(6Al-4V), 7(Ti-0.15Pd), 9(3Al-2.5V), 12, 23(6AL-4V ELI), 15V-3Al-3Sn-3Cr

Titanium Sheet Dimensions: Thickness: 0.3 – 300 mm, Length: 1000 – 5600 mm, Width: 400 – 2800 mm

Titanium Sheet Surface Finishes: Polished, Mill, Pickling, Painted, Brushed or Blasted

Rating: 4.7 / 5 based on 7 customer reviews

  • Description
  • Specification
  • Standard
  • Process
  • Packing

Titanium plates are found in a variety of applications such as heat exchangers, various types of corrosive-resistant equipment, textile machinery and sporting equipment, etc.

Medical titanium plate

No.

Grade

Size (mm)

State

Standard

1

Gr2,Gr3

3 x 11 x (500~1000)

bright

ASTM F67

2

Gr2,Gr3

3.5 x 12 x (500~1000)

bright

ASTM F67

3

Gr2,Gr3

4 x 14 x (500~1000)

bright

ASTM F67

4

Gr5

THK 3~60

bright

ASTM F136

Titanium sheet for plate heat exchanger

Grade

Size (mm)

State

 Standard

Thickness

Width

Length

Gr1, Gr7

0.5~0.8

200~500

500~2000

M

ASTM B265

0.9~1.0

200~500

500~2000

M

ASTM B265

0.5~0.8

500~800

800~2000

M

ASTM B265

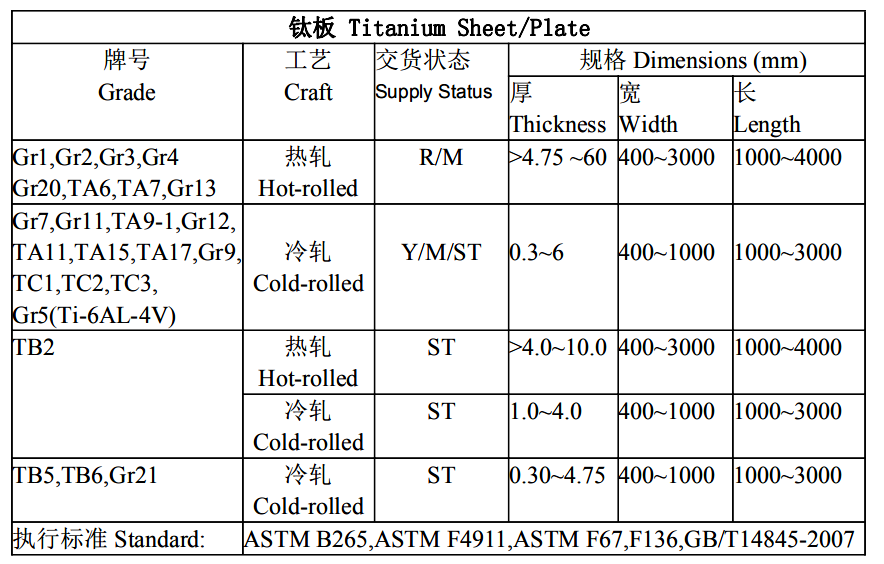

Titanium Sheets and Plates Specifications

Grade

Grade1, Grade 2, Grade 3, Grade 4, Grade 5, Ti-6AL4V ELI, Grade7, Grade 9, Grade 12

Thickness

 0.3mm – 400mm

Size

1000*2000mm, 2400*6000mm

Surface

Pickling  or Polishing

Technique

Hot or cold rolling or annealed
