Clad Plate

Category : Steel Plate

Thickness:

Heavy plate(5-400mm)

Hot rolled coil(1.5-25.4mm)

Cold rolled coil(0.17-4.5mm)

Width:

Heavy plate(900-4500mm)

Hot rolled coil(600-1600mm)

Cold rolled coil(700-1500mm)

Cladding layer quantity: Single side cladded / Double side cladded

  • Description
  • Specification
  • Standard

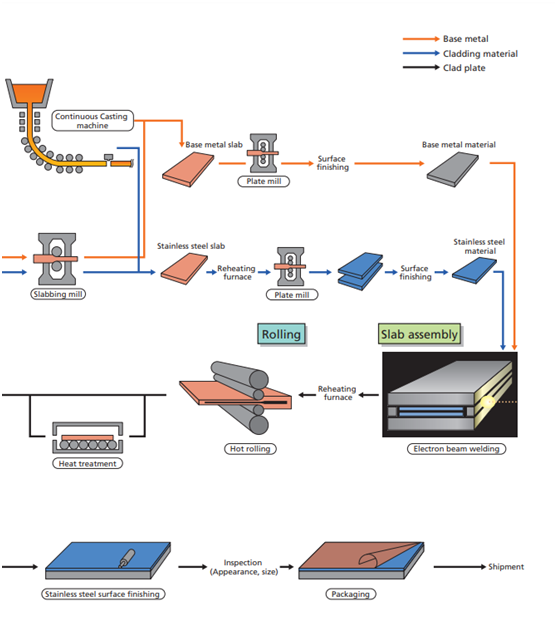

  • Process
  • Packing

The clad plate, also known as clad steel plate, is a typical laminar metal composite made by bonding the special metal plate to a carbon steel or low alloy steel plate. Generally, the special metal plate is called cladding metal, which comprise less than the greatest percentage of total thickness. The carbon steel or low alloy steel plate is called base metal, which comprise the greatest percentage of total thickness. The clad plates are designed to improve corrosion/ heat  resistance while retaining low cost, high strength, or light weight. The clad steel plates are widely used in power plant FGD system, oil & gas industry, chemical processing, seawater desalination, offshore & marine industry, aerospace industry, and construction decoration, etc.

Features

(1)Wide variety of base metal-cladding material combinations

(2)Excellent bonding characteristics and stable performance

(3)Available in wider and longer dimensions

(4)Excellent dimensional accuracy

Available dimensions

Coating material

Ferrites, austenites

Copper and nickel alloys

Total thickness:

6-150 mm

6-65 mm

Clad plate thickness:

1.5-10 mm

1.5-10 mm

Widths:

3,800 mm max.

3,800 mm max.

Length:

15,000 max. (12,400 mm Q+T max.)

15,000 max. (max.

12,400 mm Q + T)

Unit weight

2–18 tons

2–9 tons

Surface area:

At least 6 m²

At least 6 m²

Typical Products

Product

Steel grade

Thickness(mm)

Pipeline for Strongly acidic gas

S31254+Q345B

8-20

Nickel Based Alloy Clad Steel

825+X65

3+22

Cold-Rolled Steel Sheet for Elevator

304L+BDT01+304L



Special Ferritic Stainless Steel Clad Plate for the Application of Precast Concrete Mold

Special ferritic stainless stee+Q345

10

Duplex Stainless Steel Clad Plate

S32205
+Q345C

4+20

Clad Plate for Wear-Resisting Pipe 30Cr13+Q235B

30Cr13+Q235B

6+8

Clad plate for corrosion resistant pipeline

316L+Q345B

3+10

Materials & Standards of Clad Steel Plates

Generally, the base metal of clad plates are usually carbon steels or low alloy steels, which may be made in accordance with ASTM A516 (ASME SA-516), ASTM A285 (ASME SA-285), ASTM A387 (ASME SA-387), ASTM A36, ASTM A283, etc. The cladding metal may be selected from a variety of special metals based on different classifications:



Stainless steel clad plate: the cladding metal may be austenitic stainless steel or duplex stainless steel such as SS 304/304L, SS 316/316L, SS 321, SS 347, SS 310S, Duplex 2205, Duplex 2507, UNS S31803, 904L, AL6XN, etc. Standard specification: ASTM A240 (ASME SA-240), ASTM A263 (ASME SA-263), ASTM A264 (ASME SA-264).

Nickel & nickel alloy clad plate: the cladding metal may be the strip, sheet, or plate in accordance with ASTM B127, ASTM B162, ASTM B168, ASTM B333, ASTM B409, ASTM B424, ASTM B443, ASTM B463, ASTM B575, ASTM B582, ASTM B625. Typically, these materials include Inconel 600, Inconel 617, Inconel 625, Incoloy 800/800H, Incoloy 825, Incoloy 925, Monel 400, Monel K-500, Hastelloy C-276, Hastelloy C-22, Nickel 200, Nickel 201, Alloy 20, Alloy 31, etc. The clad plate manufacture standard is ASTM A265/ ASME SA-265.

Reactive & refractory metal clad plate: the cladding metal may be titanium and titanium alloy (ASTM B265/ ASME SB-265), niobium and niobium alloy (ASTM B393), zirconium and zirconium alloy (ASTM B551/ ASME SB-551), tantalum and tantalum alloy (ASTM B708), aluminum and aluminum alloy (MIL-J-24445A). The clad plates shall be made in accordance with ASTM B898.

Copper & copper alloy clad plate: the cladding metal may be copper and copper alloy of ASTM B96, ASTM B152, ASTM B171, ASTM B846. The copper clad steel plate shall be manufactured in accordance with ASTM B432.



Chemical Composition and Mechanical Properties

The base metal and cladding metal plates shall conform to its chemical and tensile requirements respectively in accordance with relative standard specifications. Especially, shear strength shall be tested for base metal, cladding metal, and clad plate respectively to ensure sufficient bond strength.



Bonding Integrity, Ultrasonic Test on Clad Plate

The cladding metal shall be integrally and continuously bonded to the base metal. To ensure the bonding integrity, the bonding area or interface shall be ultrasonically tested completely. In our quality control system, 100% bonding rate is required. The ultrasonic examination shall be performed in accordance with ASTM A578/ A578M.
