347 (UNS S34700) 347H Stainless Steel Coil is columbium stabilized austenitic stainless steel plate with good general corrosion resistance and somewhat better resistance in strong oxidizing conditions than 321 (UNS S32100). It has excellent resistance to intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 800 – 1500°F (427 – 816°C). The alloy has good oxidation resistance and creep strength to 1500°F (816°C). It also possesses good low temperature toughness.
Surface Finished Of Stainless Steel Coil :
Surface finish |
Characteristics & Application |
NO 1 |
Hot-rolled surface,annealed and pickled,can be used as cold-rolling material,industial tanks and chem i cal devices. |
2D |
Cold-rolled, an nealed and pick led with out skinpassing the dull prod ucts can be used as auto mo bile parts, build ing materrials and pipings. |
2B |
The surface brightness and flatness of NO.2B is better than NO.2D. Then through a special surfacetreament to improve its mechamical properties, N02B could nearly satisfy com pre hen sive uses. |
NO.3 |
Polished with abra sive belt of grit #100#120,have bet ter bright ness with dis con tin u ous coarse stria, used as in ner and ex ter nal or na ments for building, elec tri cal ap pli anc es and kitchen uten sils etc. |
NO.4 |
Polished with abrasive belt of grit #150#180, have better brightness with discontinuous coarse stria, but thinner than NO.3, are used as bathtud buildinginner and external ornaments electrical appliances, kitchen utensils and food processing equipment etc. |
#320 |
Polished with abrasive belt of grit #320, have better brightness with discontinuous coarse stria, but thinner NO.3, are used as bathtub building inner and external ornaments electrical appliances kitchen utensils and food lprocessing equipment etc. |
HL |
Polished with abrasive belt of grit #150-320 on the No.4 finish and has continuous streaks, mainly used as building ornaments, elevators, door of building, frontal plate etc. |
BA |
Cold rolled, bright an nealed and skin-passed, the prod uct has ex cel lent bright ness and good re flex iv i ty like mirror, used for lectrical appliances, mirror, kitch en apparatus, or na ment ma te ri als etc |
Specifications |
ASTM A240 / ASME SA240 |
Thickness |
0.3mm to 200mm |
Width |
200mm to 3000mm |
Length |
500mm to 12000mm |
Surface |
2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand |
Finish |
Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Form |
Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
EQUIVALENT GRADES
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
GOST |
EN |
SS 347 |
1.4550 |
S34700 |
SUS 347 |
08Ch18N12B |
X6CrNiNb18-10 |
SS 347H |
1.4961 |
S34709 |
SUS 347H |
- |
X6CrNiNb18-12 |
CHEMICAL COMPOSITION
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Cb |
Ni |
Fe |
347 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
17.00 - 20.00 |
10xC – 1.10 |
9.00 - 13.00 |
62.74 min |
347H |
0.04 – 0.10 |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
17.00 - 19.00 |
8xC – 1.10 |
9.0 -13.0 |
63.72 min |
MECHANICAL PROPERTIES
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
8.0 g/cm3 |
1454 °C (2650 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |

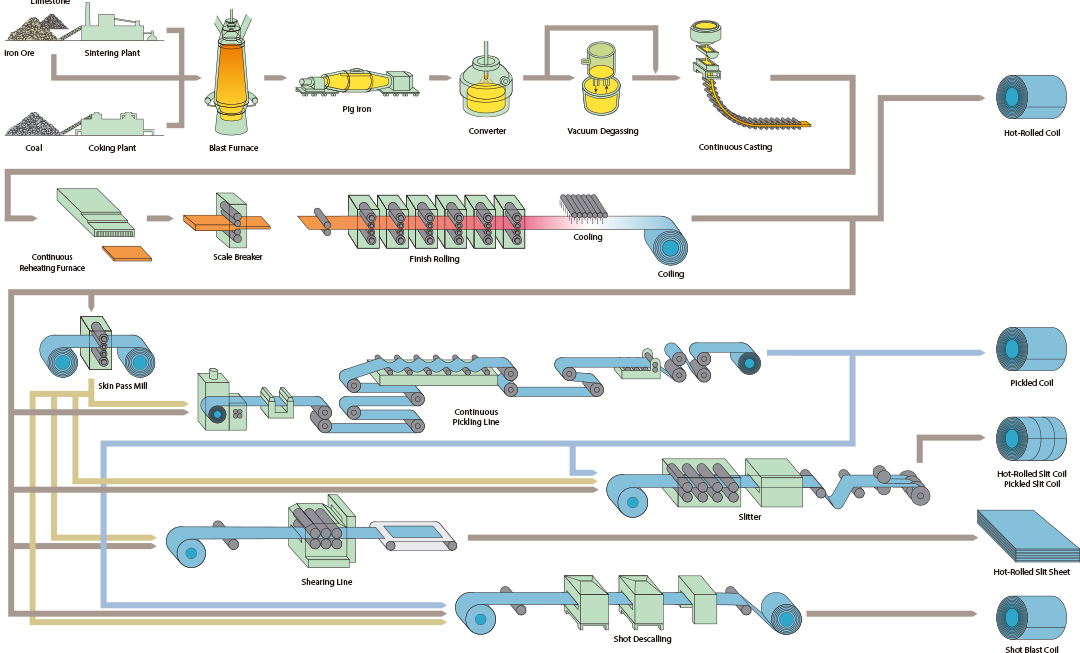

Hot-Rolled Steel Sheets and Coils

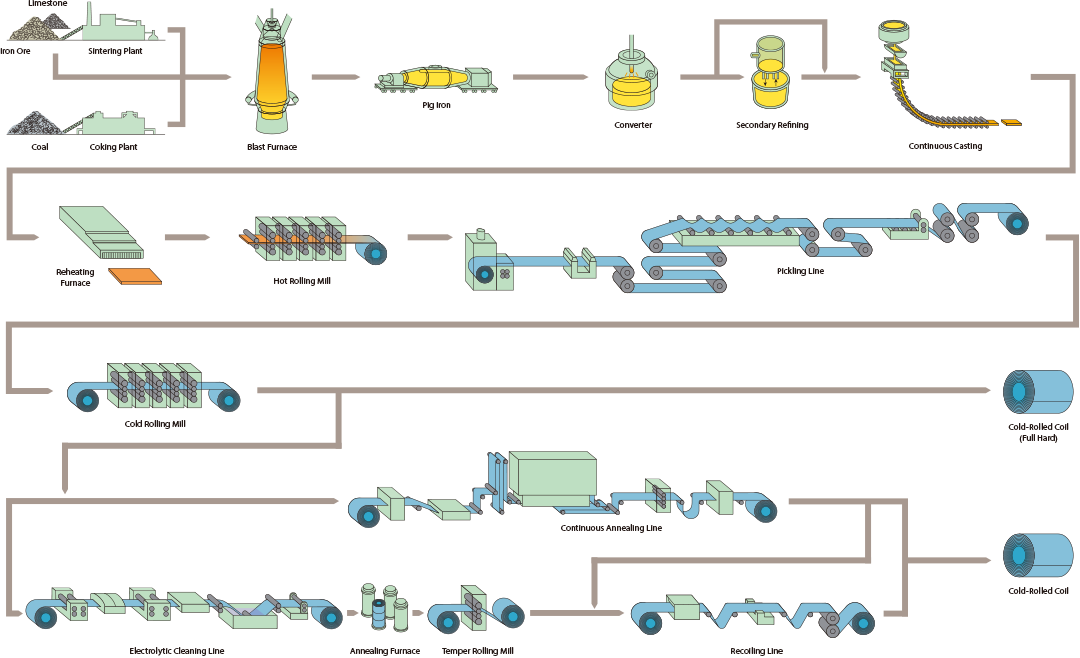

Cold-Rolled Steel Sheets and Coils
