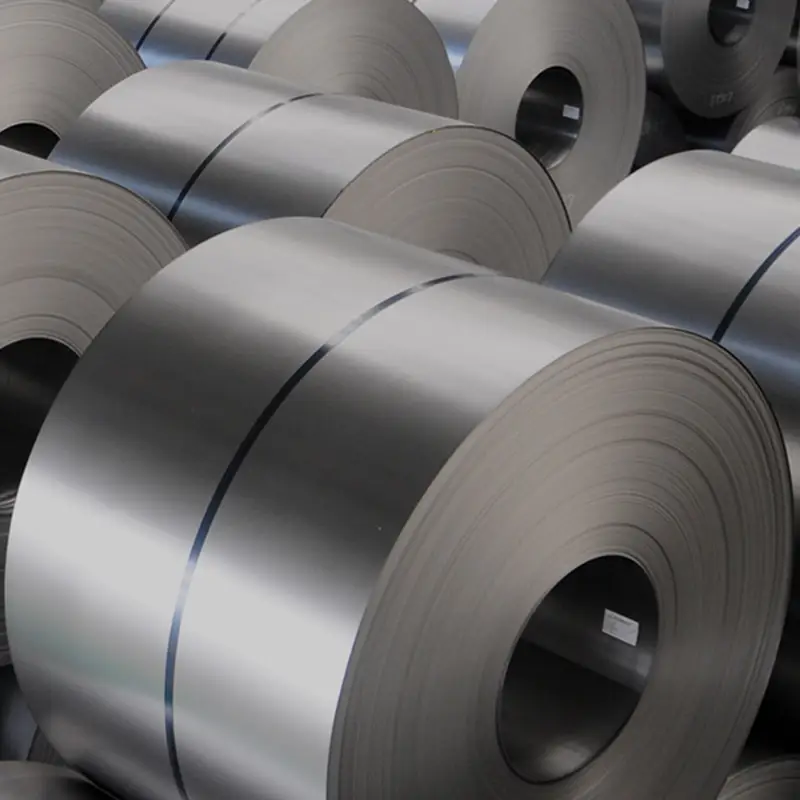

Stainless Steel Coil

Standard:JIS, AiSi, ASTM, GB, DIN, EN, BS

Size:

Thickness:0.1mm-20mm,Width:1000mm,1219mm(4feet),1250mm,1500mm,1524mm(5feet),

1800mm,2000mm or as your requirements,Coil weight:3-10 tons or as your requirements

Model Number:200 series: 201 202

300 series: 301 304 304L 305 309S 316 316L 316Ti 317L 310S 347 347H

400 series: 405 409 409L 410 420 430 444 440C 447

duplex series: 2205 2507 2520

600 series: 630 631

super series: 904 904L

Type:Coil/Plate

Application:Boiler Plate, building materials,food industry

Processing Service:Bending, Decoiling, Punching, Cutting

Technique:Hot rolled/Cold rolled

Surface finish:Common: 2B, 2D, HL(Hairline), BA(Bright annealed), No.4

Colored: Gold mirror, Sapphire mirror, Rose mirror, black mirror, bronze mirror;

Gold brushed, Sapphire brushed, Rose brushed, black brushed etc.

  • Description
  • Specification
  • Standard
  • Process
  • Packing

Stainless steel coil is also known as stainless steel belt and stainless steel coil, characterized by complete specifications, diverse materials; High dimensional accuracy, up to ± 0.1mm;Excellent surface quality, good brightness; Strong corrosion resistance, high tensile strength and fatigue strength; Stable chemical composition, pure steel, low inclusion content, widely used in construction, shipbuilding, vehicle manufacturing, machinery manufacturing, furniture and household appliances industry, electrical and automation industry.

Stainless steel coil is distinguished from carbon steel by their chromium content and, in certain cases - nickel. Adding chromium to carbon steel makes it more rust and stain-resistant, and when nickel is added to chromium stainless steel it enhances its mechanical properties, for example its density, heat capacity and strength.

Grade

Finish

Thickness (mm)

Width (mm)

304

2B & No. 4 PE

0.55

914 & 1219

304

2B & No. 4 PE

0.70

914 & 1219

304

2B, 2B PE, No. 4 PE & BA PE

0.90

750, 914 & 1219

304

2B, 2B PE, No. 4 PE & BA PE

1.20

750, 914, 1050, 1219 & 1500

304

2B, 2B PE & No. 4 PE

1.50

914, 1219 & 1500

304

2B, 2B PE & No. 4 PE

1.60

914, 1219 & 1500

304

2B, 2B PE & No. 4 PE

2.00

914, 1219 & 1500

304

2B, 2B PE & No. 4 PE

2.50

914, 1219 & 1500

304

2B, 2B PE & No. 4 PE

3.00

914, 1219 & 1500

304L

2B & 2B PE

4.00

1500 & 2000

316

2B

0.55

1219

316

2B

0.70

1219

316

2B

0.90

1219

316

2B & No. 4 PE

1.20

1219

316

2B & No. 4 PE

1.50

914, 1219 & 1500

316

2B & No. 4 PE

1.60

914, 1219 & 1500

316

2B & No. 4 PE

2.00

914, 1219 & 1500

316

2B & No. 4 PE

2.50

914, 1219 & 1500

316

2B & No. 4 PE

3.00

914, 1219 & 1500

316L

2B & 2B PE

4.00

1500 & 2000

3CR12

2B

2.0

1250

3CR12

No. 1

4.0

1250 & 1500

Chemical Composition


Grade

C

Si

Mn

P

S

Ni

Cr

Mo

201

≤0 .15

≤0 .75

5. 5-7. 5

≤0.06

≤ 0.03

3.5 -5.5

16 .0 -18.0

-

202

≤0 .15

≤l.0

7.5-10.0

≤0.06

≤ 0.03

4.0-6.0

17.0-19.0

-

301

≤0 .15

≤l.0

≤2.0

≤0.045

≤ 0.03

6.0-8.0

16.0-18.0

-

302

≤0 .15

≤1.0

≤2.0

≤0.035

≤ 0.03

8.0-10.0

17.0-19.0

-

304

≤0 .0.08

≤1.0

≤2.0

≤0.045

≤ 0.03

8.0-10.5

18.0-20.0

-

304L

≤0.03

≤1.0

≤2.0

≤0.035

≤ 0.03

9.0-13.0

18.0-20.0

-

309S

≤0.08

≤1.0

≤2.0

≤0.045

≤ 0.03

12.0-15.0

22.0-24.0

-

310S

≤0.08

≤1.5

≤2.0

≤0.035

≤ 0.03

19.0-22.0

24.0-26.0


316

≤0.08

≤1.0

≤2.0

≤0.045

≤ 0.03

10.0-14.0

16.0-18.0

2.0-

3.0

316L

≤0 .03

≤1.0

≤2.0

≤0.045

≤ 0.03

12.0 - 15.0

16 .0 -1 8.0

2.0 -

3.0

321

≤ 0 .08

≤1.0

≤2.0

≤0.035

≤ 0.03

9.0 - 13 .0

17.0 -1 9.0

-

630

≤ 0 .07

≤1.0

≤1.0

≤0.035

≤ 0.03

3.0-5.0

15.5-17.5

-

631

≤0.09

≤1.0

≤1.0

≤0.030

≤0.035

6.50-7.75

16.0-18.0

-

904L

≤ 2 .0

≤0.045

≤1.0

≤0.035

-

23.0·28.0

19.0-23.0

4.0-5.0

2205

≤0.03

≤1.0

≤2.0

≤0.030

≤0.02

4.5-6.5

22.0-23.0

3.0-3.5

2507

≤0.03

≤0.8

≤1.2

≤0.035

≤0.02

6.0-8.0

24.0-26.0

3.0-5.0

2520

≤0.08

≤1.5

≤2.0

≤0.045

≤ 0.03

0.19 -0. 22

0. 24 -0 . 26

-

410

≤0.15

≤1.0

≤1.0

≤0.035

≤ 0.03

-

11.5-13.5

-

430

≤0.1 2

≤0.75

≤1.0

≤ 0.040

≤ 0.03

≤0.60

16.0 -18.0

-



Mechanical Requirements

Mechanical Property

Tensile (MPa )

Yield ( Mpa)

Elongation(%)

Hardness ( HRB)

304

≥515

≥205

≥40

≤ 92

304L

≥482

≥170

≥40

≤ 88

316

≥515

≥205

≥40

≤ 95

316L

≥485

≥170

≥40

≤ 95

321

≥515

≥205

≥40

≤ 95

409

≥380

≥205

≥20

≤ 80

409L

≥350

≥185

≥22

≤ 80

430

≥450

≥205

≥22

≤ 80

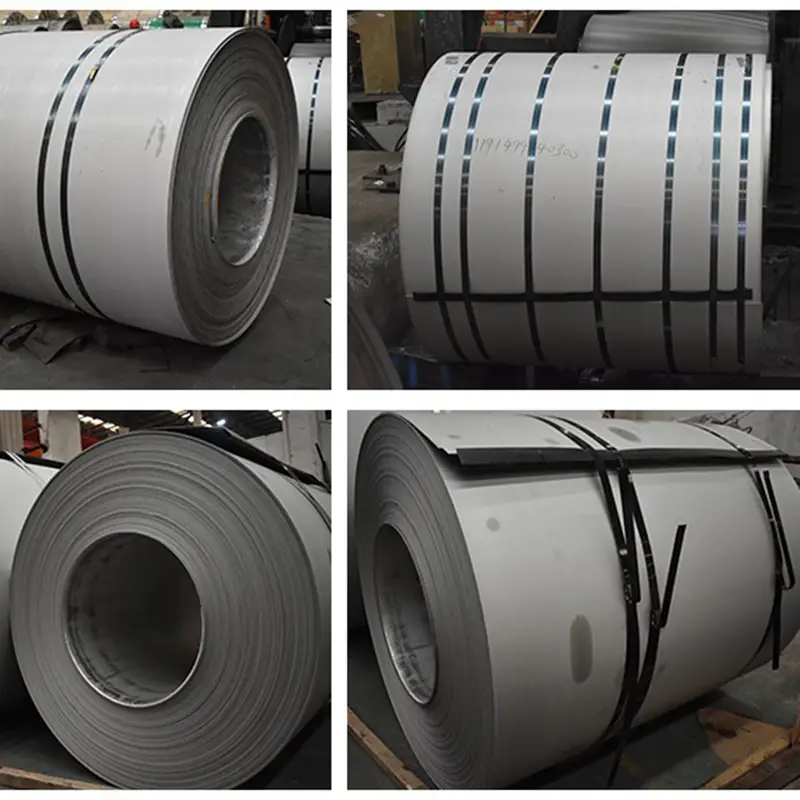

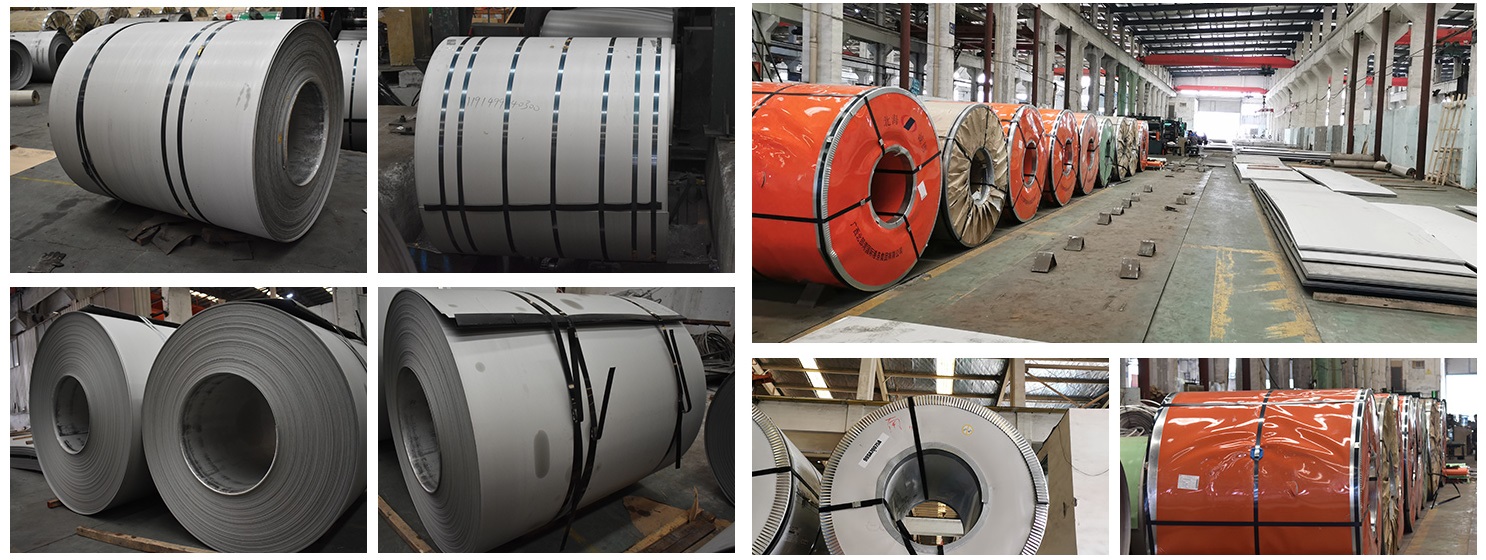

Water proof paper+metal pallet+Angle bar protection+steel belt or as requirements.

The inner size of container is below:

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM,23MTS

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM,27MTS

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM,27MTS
