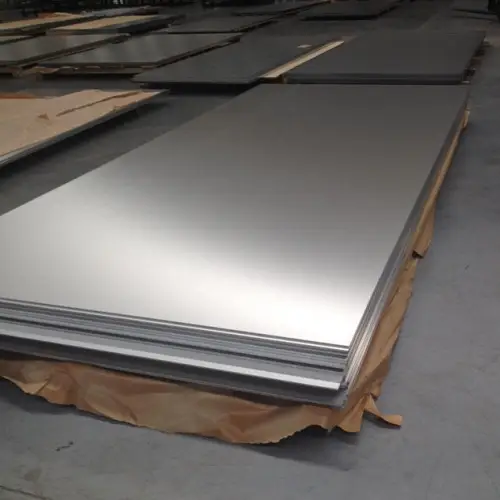

About aluminum plate

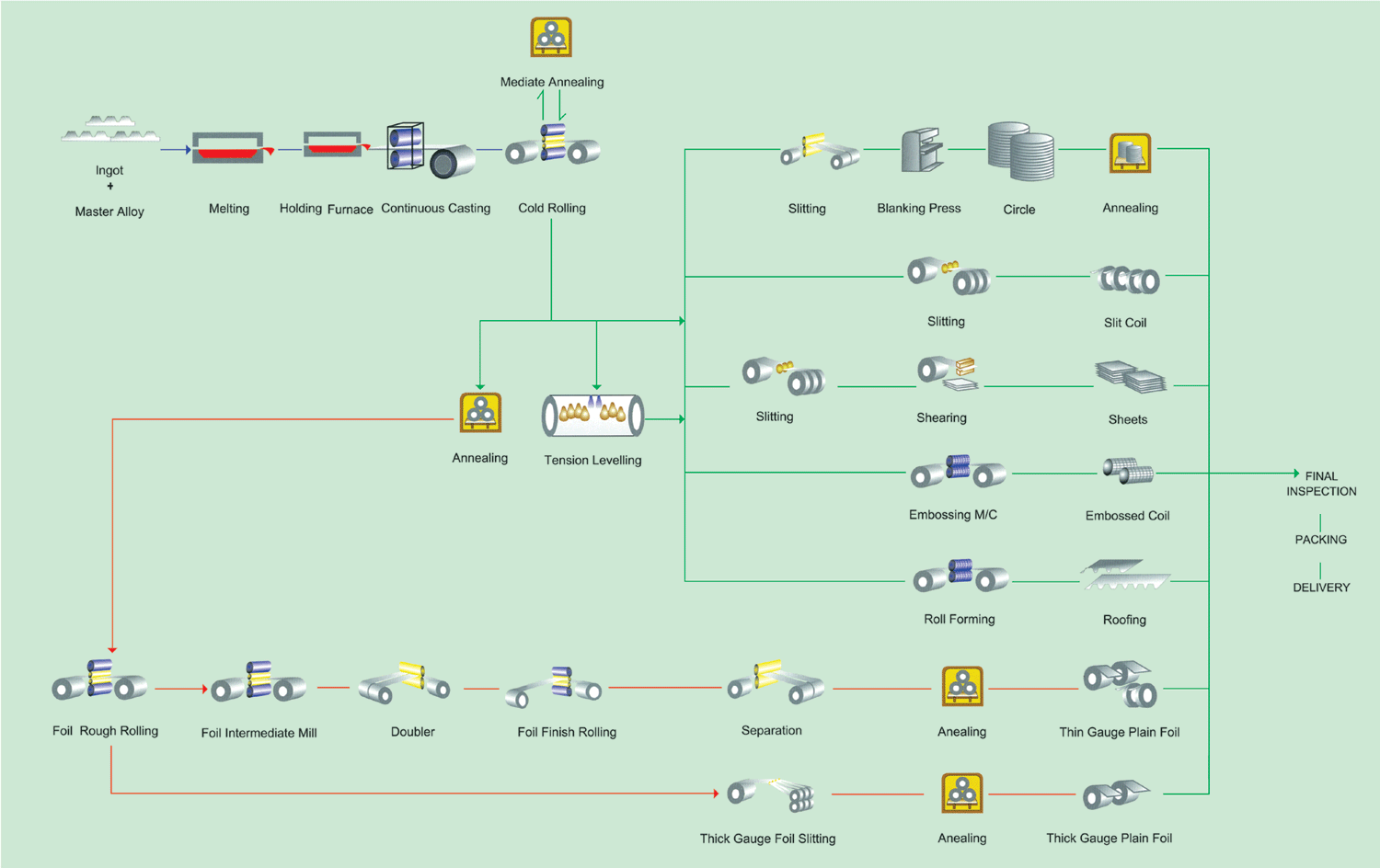

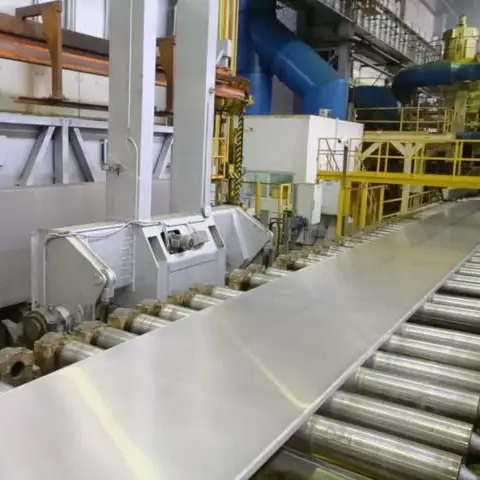

An aluminum plate is a kind of aluminum metal product. Aluminum ingots are melted and added to different alloys. It is gotten after the Aluminum products are processed through casting-rolling or hot-rolling, cold-rolling, annealing, cross-cutting and other processes.
By using the plastically processing methods to roll, extrude, stretch, and forge aluminum billets into plate-shaped aluminum products. In order to ensure the final performance of the plate, the finished product is treated by annealing, solution treatment, quenching, natural aging, and artificial aging treatment.
Aluminium plate and sheets are determined by their gauge (thickness). In general terms, a sheet is a thinner piece of aluminium in comparison to a plate.
A sheet of aluminium is from 0.5mm thickness up to 6.0mm in thickness – greater than 6.0mm in thickness is considered a plate.
As Per Alloy Composition, It Can Be Divided Into
High purity aluminum sheet (rolled from high purity aluminum with content over 99.9)
Pure aluminum sheet (basically rolled from pure aluminum)
Aluminum alloy sheets (consisting of aluminum and auxiliary alloys. Usually a series of aluminum copper, aluminum manganese, aluminum-silicon, aluminum-magnesium.)
Composite aluminum sheet or quinone welded sheet (special purpose aluminum sheet material obtained by means of composite materials)
Aluminum composite sheet (Aluminum clad sheet used for special purposes)
As Per Thickness, It Can Be Divided Into
Thin Sheet 0.15-2.0mm
Conventional plate 2.0-6.0mm

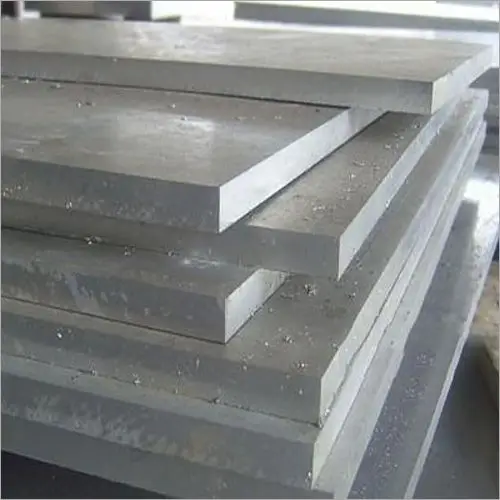

Medium Plate 6.0-25.0mm
Thick plate 25-200mm
Five-bar pattern aluminum sheet
Over 200mm Ultra-thick Plates
Aluminum Plate Classification
1000 Series alloys
1000 series alloys represent pure aluminium (99% aluminium content) offering high corrosion resistance with high thermal and electrical conductivity. 1000 series represents the purest of all commercial aluminium alloys currently available
2000 Series Alloy
The 2000 series aluminum alloy has a high content of Cu element. It has a high hardness. The 2000 series aluminum alloys are mainly used in the aviation field.
3000 Series Alloy
The 3000 series aluminum alloy is made of Mn as the main component. It has an excellent anti-rust function. It is used in humid environments such as air conditioners, refrigerators, and under cars. 3000 aluminum alloy is a commonly used alloy series.
5000 Series Alloy
The 5000 series aluminum alloys belong to the more commonly used alloy series. The main element is Mg. It is characterized by low density, high tensile strength and high elongation. In the same area, the weight of 5000 series alloy is lower than other series. Often used in aviation and conventional industries.
6000 Series Alloy
6000 series aluminum alloys mainly contain Mg and Si. 6000 series alloys have excellent corrosion resistance and oxidation resistance.
7000 Series Alloy
7000 series aluminum alloys mainly contain Zn, Mg, and Cu. 7000 series alloys are super hard aluminum alloys. Has good wear resistance. It is often used in the manufacture of aircraft.
Thickness(mm) |
Size 1 |
Size 2 |
Size 3 |
Size 4 |
Width Range(mm) |
0.5 |
1000*2000 |
1200*2400 |
1250*2500 |
___ |
≥10~≤2000 |
0.6 |
1000*2000 |
1200*2400 |
1250*2500 |
___ |
≥10~≤2000 |
0.7 |
1000*2000 |
1200*2400 |
1250*2500 |
___ |
≥10~≤2000 |
0.8 |
1000*2000 |
1200*2400 |
1250*2500 |
___ |
≥10~≤2000 |
0.9 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2000 |
1 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2000 |
1.2 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2000 |
1.5 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2000 |
2 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2000 |
3 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2650 |
4 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2650 |
5 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2650 |
6 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2650 |
8 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2650 |
10 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2650 |
12 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2650 |
14 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2650 |
16 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥10~≤2650 |
18 |
1000*2000 |
1200*2400 |
1250*2500 |
1500*3000 |
≥100~≤2650 |
Length: Customized
Calculation formula: Thicknessdensity(width/1000)*(length/1000) = weight of a piece of kg [1 series and 3 series density is 2.71. 5 series 8 series density is 2.8]
Common Materials And Alloy Status
Alloy Series |
Material |
Thickness(mm) |
Width (mm) |
Length(mm) |
Alloy state |
1000 Series |
1,050,106,010,701,100 |
0.1-10.0 |
100-2650 |
100-16000 |
F,O,H12,H14,H16 |
2000 Series |
2024,2A12,2017,2014,2A11,2A14 |
1.0-600 |
100-2650 |
100-16000 |
F,O,T3,T4,T351,H112 |
3000 Series |
3003,3004,3105,3005,3104,3A21 |
0.1-500 |
100-2650 |
100-16000 |
F,O,H12,H14,H16 |
5000 Series |
5052,5083,5754,5A03,5454,5182,5A06,5005, |
0.1-600 |
20-2650 |
100-16000 |
HO/H111,H14,H16,H18, |
6000 Series |
6061,6063,6082,6005,6101,6060,6005A |
0.3-500 |
100-2800 |
100-16000 |
F,O,T4,T6,T651,H112 |
7000 Series |
7075,7005,7A09,7050,7A04 |
1-500 |
<2600 |
100-16000 |
F,O,T6,T651,T7451,H112 |

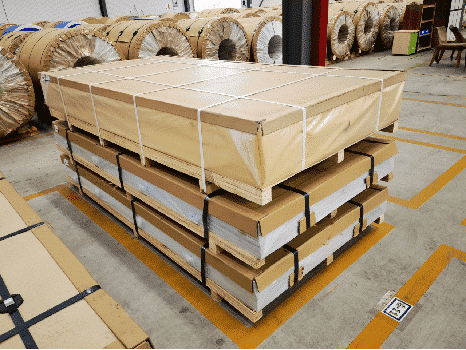

1: Wooden support + kraft paper: waterproof packaging
2: Protective film: blue film. The protective film with the customer’s trademark can be customized. The main function protection surface is not scratched or damaged by static electricity.
