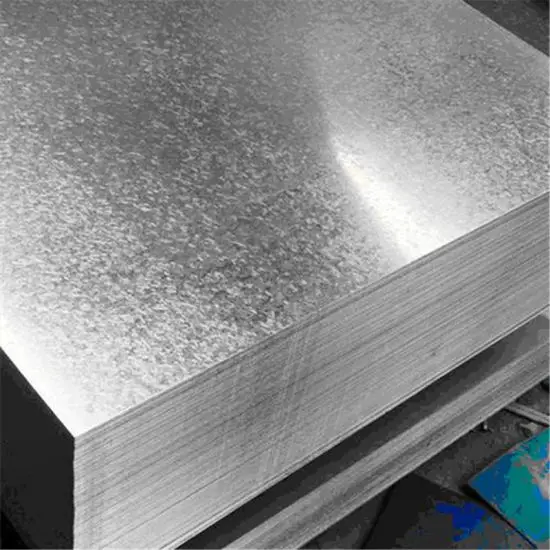

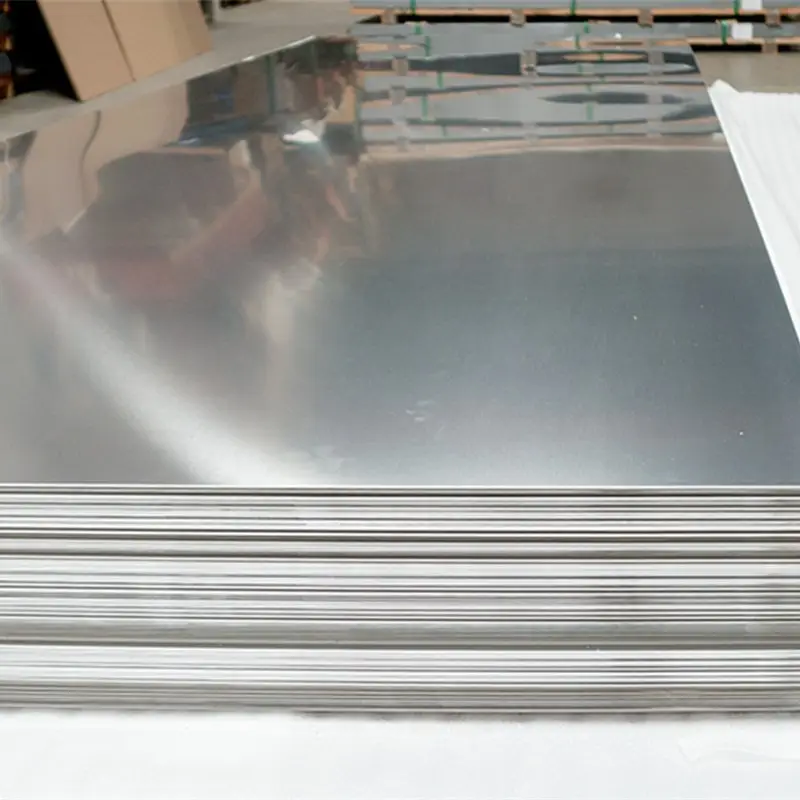

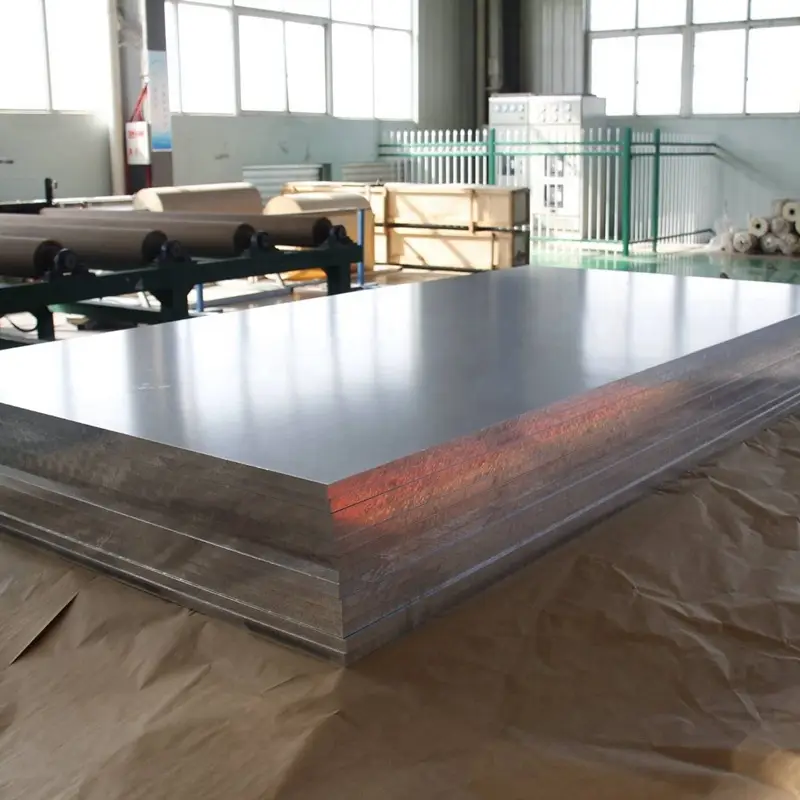

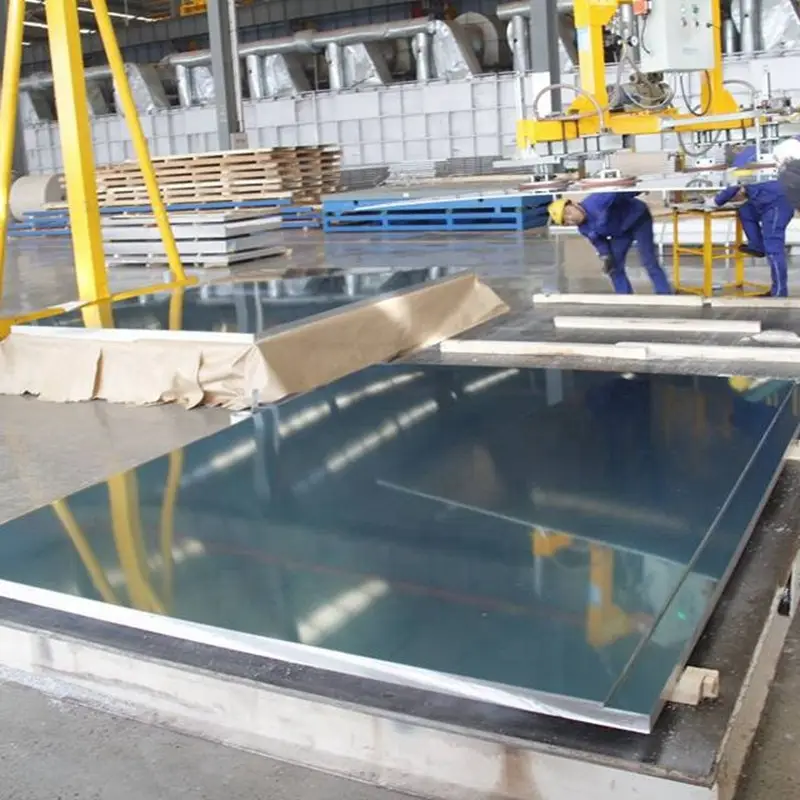

Galvanized Aluminum And Magnesium Steel Plate

Category : Aluminum Product

Thickness:0.27-2.5mm, Width:600-1500mm, Coatings: 100-450g GSM

Inner diameter: 508/610mm

Standard: AISI, ASTM, BS, DIN, GB, JIS, SGMCC, SGMCD1, SGMCD2Thickness0.27-2.00mm

Width: 600mm-1524mm

Surface Treatment: Chromated/Oiled/Dry/AFP/Skinpassed

Based Metal: Cold Rolled

Zinc Coating: 60g-600g

  • Description
  • Specification
  • Standard
  • Process
  • Packing

WHAT IS ZINC-ALUMINUM-MAGNESIUM STEEL?

The zinc-aluminum-magnesium coating makes the hot-dip coating have excellent corrosion resistance, wear resistance and processability through the action of aluminum and magnesium.

Can be widely used in various fields.

Zinc-aluminum-magnesium coating products can allow customers who use GI products to directly change the existing processing, assembly, painting and other processes.

Then replace with zinc aluminum magnesium coating.

Zinc-aluminum-magnesium ternary alloy coated steel strip has high corrosion resistance, and its corrosion resistance is more than 5 times that of pure zinc-coated products (GI) with the same coating weight. The corrosion resistance of the cut is especially obvious, which can replace processing and reheating after forming Dip galvanized steel strip.

Types of zinc-aluminum-magnesium coatings

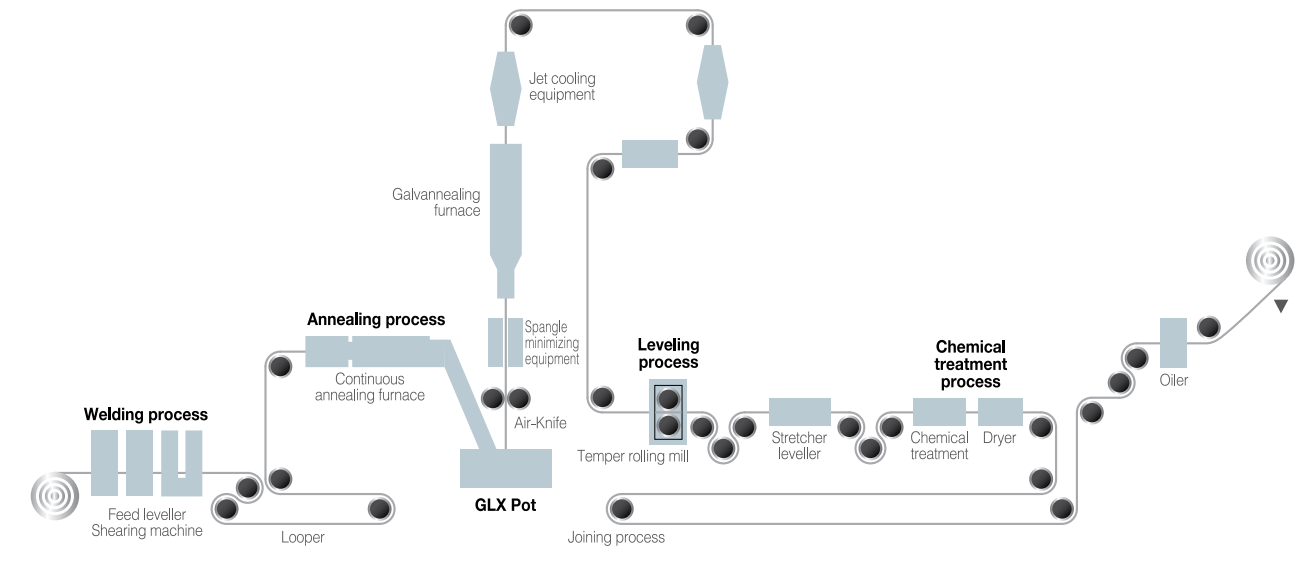

The hot-dip galvanized aluminum-magnesium production line can provide zinc-aluminum-magnesium coated steel strips with three component systems according to the application

The use of different parts and components in the automobile, home appliances and construction industries.

Two spare zinc-aluminum-magnesium hot-dip coating production lines can provide coatings of two component systems at the same time, while stabilizing production

Complete the adjustment of the composition of the zinc-aluminum-magnesium coating, flexible switching, and guarantee the production schedule.

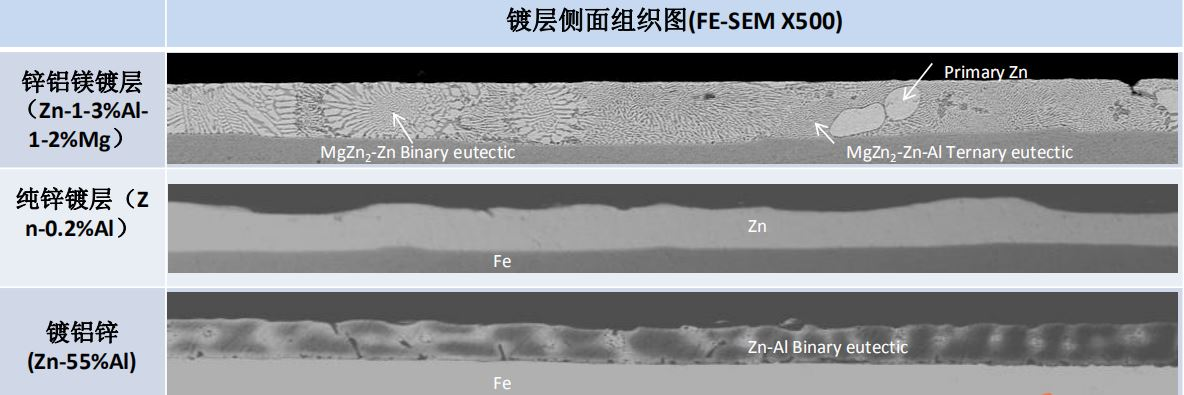

Corrosion Resistance Mechanism of Zinc Aluminum Magnesium Coating

The magnesium (Mg) component in the coating is beneficial to promote the formation of a very stable and well-structured fine protective film-

simonkolleite (Zn5(OH)8Cl2 · H2O), which generates and maintains a film-like covering layer on the surface of the plating layer, thereby exerting excellent corrosion resistance

Grade

Re.min(Mpa)

Rm.Min(Mpa)

A,Min%

DX51D+ZAM

-

270-500

22

DX52D+ZAM

140-300

270-420

26

DX53D+ZAM

140-260

270-380

30

DX54D+ZAM

120-220

260-350

36

S220GD+ZAM

220

300

20

S250GD+ZAM

250

330

19

S280GD+ZAM

280

360

18

S320GD+ZAM

320

390

17

S350GD+ZAM

350

420

16

S550GD+ZAM

550

560

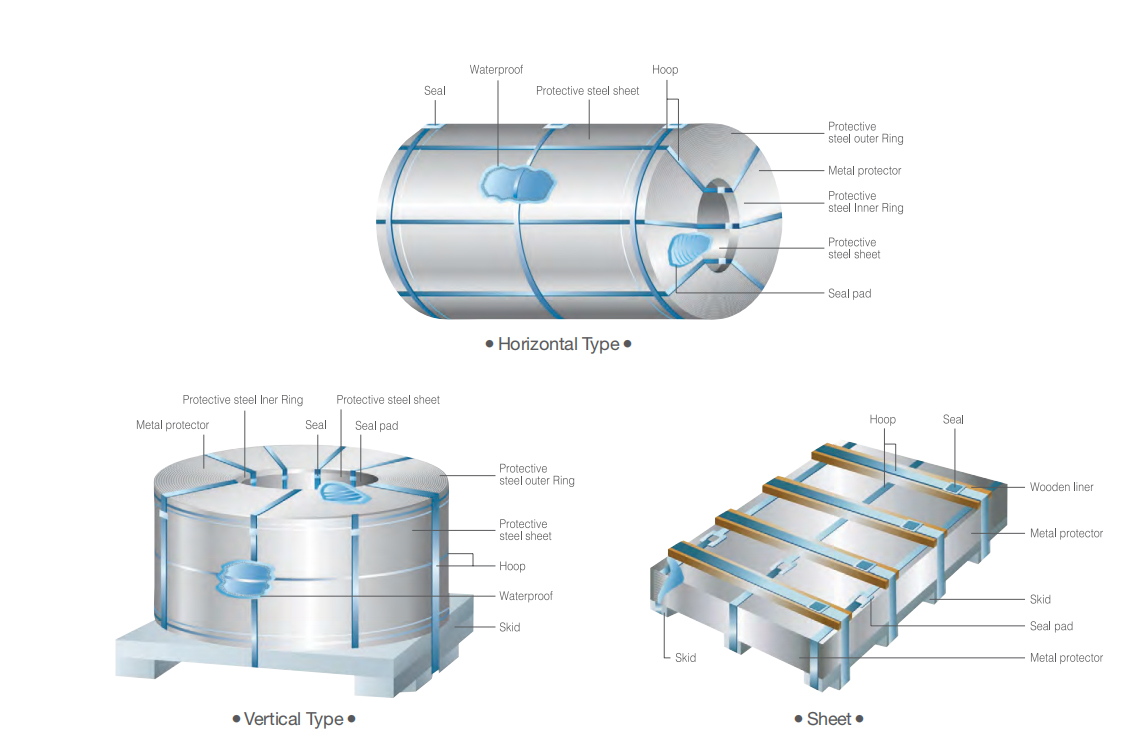

Package: Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement

OEM, stample, SGS,BV and other third party inspections according to requirement.

stamps are accepted.
